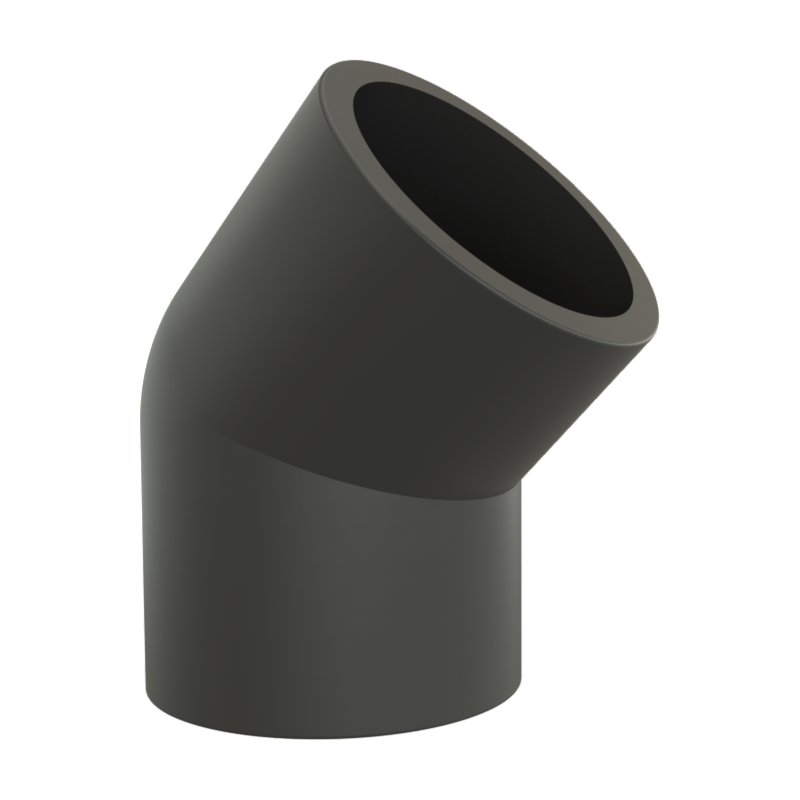

![Spears 417/817 Elbow 45° (Socket) — Autodesk Inventor Model States (PVC/CPVC) [*.ipt]](https://mail.philiprivard.com/images/store/spears/417-817(1)_main.png "Spears 417/817 Elbow 45° (Socket) — Autodesk Inventor Model States (PVC/CPVC) [*.ipt]")

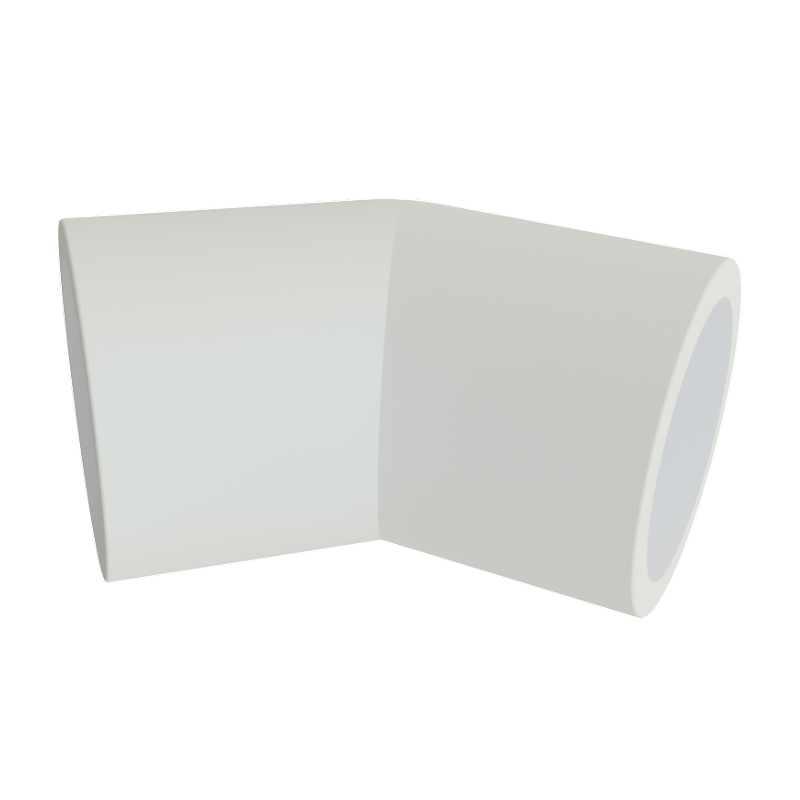

Spears 417/817 Elbow 45° (Socket) — Autodesk Inventor Model States (PVC/CPVC) [*.ipt]
USD7.99
SKU:
417-817
Complete Autodesk Inventor parametric Model States file for Spears 417/817 Series 45 Degree Elbow Socket x Socket. Covers PVC Schedule 40 White, PVC Schedule 80 Grey and CPVC Schedule 80 Grey — all injection molded sizes in a single .ipt file with fully configured iMates on both ports.
What's included:
- 48 Model States — 45° Elbow (1/2" to 12" Sch40, 1/4" to 14" Sch80/CPVC)
- Three materials in one file — PVC Sch40 White, PVC Sch80 Grey, CPVC Sch80 Grey
- Complete iProperties — Part Number, Description, Material, Vendor, Standards (ASTM D2466 / D2467)
- iMates configured on both ports for quick assembly placement
- Dimensions sourced directly from official Spears Manufacturing catalog
- Compatible with Autodesk Inventor 2020 and later
_main.png) |
_main.png) |
"Stop modeling the same fittings over and over. One file. Every size. Every material. Drop it into your assembly in two clicks."
| Model State | Description | Material | Size |
|---|---|---|---|
| 417-005 | PVC Sch40 45 Degree Elbow Socket x Socket 1/2" | Sch40 PVC White | 1/2" |
| 417-007 | PVC Sch40 45 Degree Elbow Socket x Socket 3/4" | Sch40 PVC White | 3/4" |
| 417-010 | PVC Sch40 45 Degree Elbow Socket x Socket 1" | Sch40 PVC White | 1" |
| 417-012 | PVC Sch40 45 Degree Elbow Socket x Socket 1-1/4" | Sch40 PVC White | 1-1/4" |
| 417-015 | PVC Sch40 45 Degree Elbow Socket x Socket 1-1/2" | Sch40 PVC White | 1-1/2" |
| 417-020 | PVC Sch40 45 Degree Elbow Socket x Socket 2" | Sch40 PVC White | 2" |
| 417-025 | PVC Sch40 45 Degree Elbow Socket x Socket 2-1/2" | Sch40 PVC White | 2-1/2" |
| 417-030 | PVC Sch40 45 Degree Elbow Socket x Socket 3" | Sch40 PVC White | 3" |
| 417-040 | PVC Sch40 45 Degree Elbow Socket x Socket 4" | Sch40 PVC White | 4" |
| 417-050 | PVC Sch40 45 Degree Elbow Socket x Socket 5" | Sch40 PVC White | 5" |
| 417-060 | PVC Sch40 45 Degree Elbow Socket x Socket 6" | Sch40 PVC White | 6" |
| 417-080 | PVC Sch40 45 Degree Elbow Socket x Socket 8" | Sch40 PVC White | 8" |
| 417-100 | PVC Sch40 45 Degree Elbow Socket x Socket 10" | Sch40 PVC White | 10" |
| 417-120 | PVC Sch40 45 Degree Elbow Socket x Socket 12" | Sch40 PVC White | 12" |
| 817-002 | PVC Sch80 45 Degree Elbow Socket x Socket 1/4" | Sch80 PVC Grey | 1/4" |
| 817-003 | PVC Sch80 45 Degree Elbow Socket x Socket 3/8" | Sch80 PVC Grey | 3/8" |
| 817-005 | PVC Sch80 45 Degree Elbow Socket x Socket 1/2" | Sch80 PVC Grey | 1/2" |
| 817-007 | PVC Sch80 45 Degree Elbow Socket x Socket 3/4" | Sch80 PVC Grey | 3/4" |
| 817-010 | PVC Sch80 45 Degree Elbow Socket x Socket 1" | Sch80 PVC Grey | 1" |
| 817-012 | PVC Sch80 45 Degree Elbow Socket x Socket 1-1/4" | Sch80 PVC Grey | 1-1/4" |
| 817-015 | PVC Sch80 45 Degree Elbow Socket x Socket 1-1/2" | Sch80 PVC Grey | 1-1/2" |
| 817-020 | PVC Sch80 45 Degree Elbow Socket x Socket 2" | Sch80 PVC Grey | 2" |
| 817-025 | PVC Sch80 45 Degree Elbow Socket x Socket 2-1/2" | Sch80 PVC Grey | 2-1/2" |
| 817-030 | PVC Sch80 45 Degree Elbow Socket x Socket 3" | Sch80 PVC Grey | 3" |
| 817-040 | PVC Sch80 45 Degree Elbow Socket x Socket 4" | Sch80 PVC Grey | 4" |
| 817-050 | PVC Sch80 45 Degree Elbow Socket x Socket 5" | Sch80 PVC Grey | 5" |
| 817-060 | PVC Sch80 45 Degree Elbow Socket x Socket 6" | Sch80 PVC Grey | 6" |
| 817-080 | PVC Sch80 45 Degree Elbow Socket x Socket 8" | Sch80 PVC Grey | 8" |
| 817-100 | PVC Sch80 45 Degree Elbow Socket x Socket 10" | Sch80 PVC Grey | 10" |
| 817-120 | PVC Sch80 45 Degree Elbow Socket x Socket 12" | Sch80 PVC Grey | 12" |
| 817-140 | PVC Sch80 45 Degree Elbow Socket x Socket 14" | Sch80 PVC Grey | 14" |
| 817-002C | CPVC Sch80 45 Degree Elbow Socket x Socket 1/4" | Sch80 CPVC Grey | 1/4" |
| 817-003C | CPVC Sch80 45 Degree Elbow Socket x Socket 3/8" | Sch80 CPVC Grey | 3/8" |
| 817-005C | CPVC Sch80 45 Degree Elbow Socket x Socket 1/2" | Sch80 CPVC Grey | 1/2" |
| 817-007C | CPVC Sch80 45 Degree Elbow Socket x Socket 3/4" | Sch80 CPVC Grey | 3/4" |
| 817-010C | CPVC Sch80 45 Degree Elbow Socket x Socket 1" | Sch80 CPVC Grey | 1" |
| 817-012C | CPVC Sch80 45 Degree Elbow Socket x Socket 1-1/4" | Sch80 CPVC Grey | 1-1/4" |
| 817-015C | CPVC Sch80 45 Degree Elbow Socket x Socket 1-1/2" | Sch80 CPVC Grey | 1-1/2" |
| 817-020C | CPVC Sch80 45 Degree Elbow Socket x Socket 2" | Sch80 CPVC Grey | 2" |
| 817-025C | CPVC Sch80 45 Degree Elbow Socket x Socket 2-1/2" | Sch80 CPVC Grey | 2-1/2" |
| 817-030C | CPVC Sch80 45 Degree Elbow Socket x Socket 3" | Sch80 CPVC Grey | 3" |
| 817-040C | CPVC Sch80 45 Degree Elbow Socket x Socket 4" | Sch80 CPVC Grey | 4" |
| 817-050C | CPVC Sch80 45 Degree Elbow Socket x Socket 5" | Sch80 CPVC Grey | 5" |
| 817-060C | CPVC Sch80 45 Degree Elbow Socket x Socket 6" | Sch80 CPVC Grey | 6" |
| 817-080C | CPVC Sch80 45 Degree Elbow Socket x Socket 8" | Sch80 CPVC Grey | 8" |
| 817-100C | CPVC Sch80 45 Degree Elbow Socket x Socket 10" | Sch80 CPVC Grey | 10" |
| 817-120C | CPVC Sch80 45 Degree Elbow Socket x Socket 12" | Sch80 CPVC Grey | 12" |
| 817-140C | CPVC Sch80 45 Degree Elbow Socket x Socket 14" | Sch80 CPVC Grey | 14" |
"These 3D models are created by Philip Rivard based on publicly available Spears Manufacturing catalog dimensions. They are not officially endorsed by or affiliated with Spears Manufacturing."
